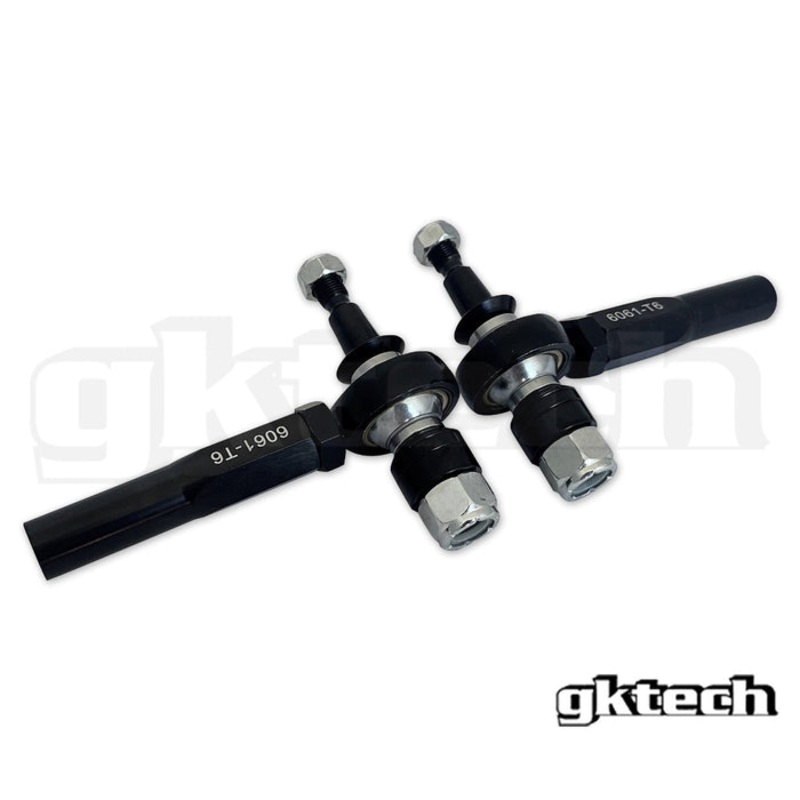

The GKTECH high misalignment tie rods have 64 degrees of misalignment and also up to 15mm of bump steer correction built in.

Although these may look pretty similar to other tie rod ends on the market, don’t be fooled as they are different (in a good way).

Almost all tie rod ends on the market that use rose joints are NOT using high misalignment bearings and wear out in no time at all. OEM type tie rod ends provide around 60 degrees of misalignment and it is critical that around this level of misalignment is kept.

Another common issue with most aftermarket style tie rod ends is that there is no protection from dust and dirt. We’ve developed dust boots specifically to suit the PCYML10T rose joints that we use in our kit. It’s also pretty common for shanks to bend under high loads, our shanks have a tensile strength of 176ksi (class 12.9)

Bump steer correction is altered through the use of 5mm shims.

– Corrects bump steer up to 15mm
– Uses high quality PTFE lined 1 5/8″ high misalignment rose joints
– Dust boots included
– Can be used within OEM wheels

FAQS

Will these fit my car?
We can only confirm fitment for the vehicles listed above under “confirmed fitment”.

Why do these not fit the ZD8 BRZ?
The alloy knuckles used on the ZD8 are a little taller than the other variants. As such, the ZD8 requires a specific tie rod end. This can be seen/purchased here: https://us.gktech.com/products/high-misalignment-zd8-brz-tie-rod-ends

How long is the warranty on these arms?
All GKTECH suspension arms come with a lifetime warranty against manufacturing defects.

The Teflon lined rose joints come with a 1 year replacement warranty.

We stock spare bearings so even after the 12 months is up we can still help with replacements, worse case scenario they’re a 5/8″ rose joint and are readily available through your local autoshop.

Are these suspension arms legal for use on street cars?
We recommend that you contact your local RTA for clarification/confirmation. Whether you use a suspension arm with a rose joint on public roads is at your discretion.

Do you carry spare parts for this product?
Yes we carry the following spare parts for this product

VEHICLE COMPATIBILITY

SCION

FR-S ZN6

SUBARU

BRZ ZC6

TOYOTA

GR86 ZN8
GT86 ZN6

USER GUIDE(S)

INSTALL VIDEOS

ASSEMBLY GUIDES

Download GT86-TROD – Customer ASM

ENGINEERING CERTIFICATES

Download M125-M145-GTRX-Z33X-Z34X-BRZX-GT86-TROD Cert
